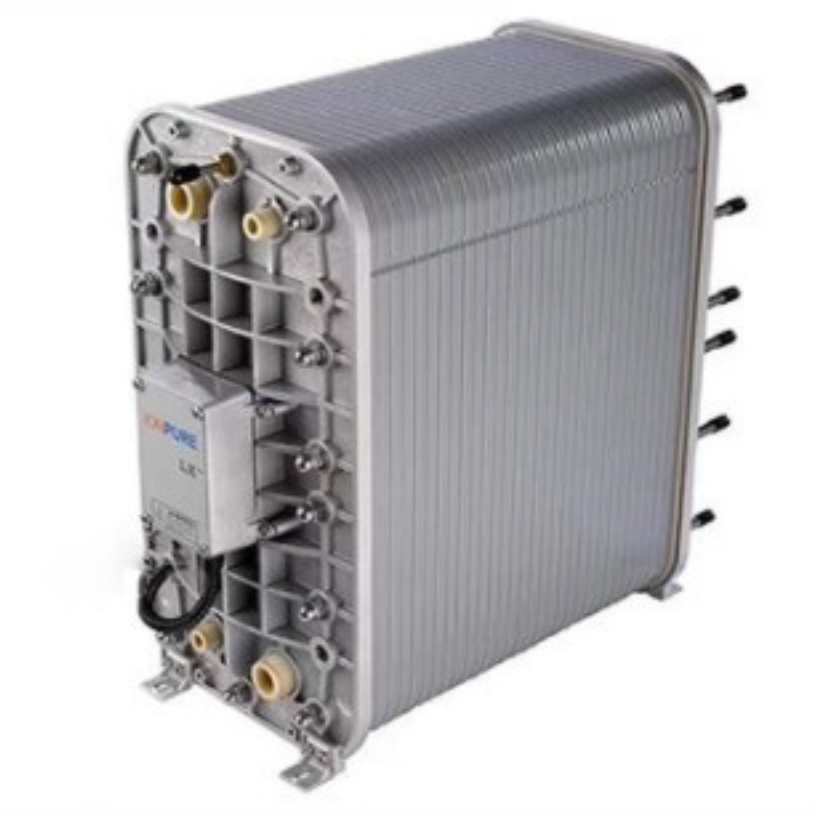

Siemens EDI Membrane Stack - IP-LXM10Z
1. Introduction to Siemens EDI Membrane Stack-IP-LXM10Z
The Siemens EDI Membrane Stack is a water treatment device that uses Continuous Electrodeionization (CEDI) technology. CEDI is an advanced deionization technology that combines ion exchange resins with ion migration under the influence of an electric field. Specifically, when fresh water enters the fresh water chamber, the ions within it undergo ion exchange with the mixed bed resin, thus detaching them from the water. These exchanged ions are attracted by electricity, with cations migrating towards the cathode through the cation exchange membrane and anions migrating towards the anode through the anion exchange membrane, entering the concentrated water chamber and being removed from the fresh water. This process creates a dynamic equilibrium within the module, where the resin is both consumed and regenerated. Compared to traditional ion exchange that requires chemical regenerants, CEDI technology can operate continuously without the need for chemical regenerants, making it simpler to operate and significantly reducing operating costs.
2. Technical Parameters of Siemens EDI Membrane Stack IP-LXM10Z
The technical parameters of IP-LXM10Z mainly include the following aspects:
1. Operating pressure: 0.7 Mpa.
2. Water output: 1.1~1.65 cubic meters per hour.
3. Outer dimensions: 60.5×32×34.8 cm.
4. Voltage: 0~135V.
5. Water quality: resistivity of 16 megohms.
6. Power: 1500 watts.
7. Current: 0~6A.
8. Equivalent conductivity of incoming water (including carbon dioxide): <40US/CM.
9. Desalination rate: 99%.
10. Operating weight: 60 kg.
11. Source of incoming water: RO water production.
12. PH value: 4~11.
13. Temperature: 5℃~45℃.
14. Hardness of incoming water: <1ppm (calculated as calcium carbonate).
15. Incoming water silicon: SiO2<1ppm.
16. Organic matter in incoming water: TOC<0.5ppm.
17. Heavy metal ions in incoming water: Fe, Mn, variable-valence metal ions <0.01ppm.
18. Residual chlorine: <0.02ppm.
In addition, regarding the incoming water parameters of the EDI module of IP-LXM10Z, the recovery rate is typically between 90~95%, the maximum allowed incoming water pressure is 7bar (100psi), the maximum allowed incoming water temperature is 45℃ (113°F), and the pressure drop range at the nominal flow rate is between 1.4\~2.1bar (20~30psi). The resistivity of the produced water is greater than 16MΩ.cm. These parameters may vary depending on the specific product and application scenario, so it is recommended to refer to the relevant product manual or contact the supplier for the most accurate information.
3. The lowest water quality requirement for Siemens EDI membrane stack-IP-LXM10Z
（CO2） The equivalent conductivity of influent water (including CO2 and silicon) | <40μs/cm |
Water inlet source | RO Product water |
Temperature | 5-45℃（40-113°F) |
Inlet pressure | 1.4-7bar（20-100psi） |
（Cl2） Oxidant (calculated as Cl2) | <0.02ppm |
（Fe) | <0.01ppm |
（Mn) | <0.01ppm |
（S2-) | <0.01ppm |
pH | 4-11 |
（CaCO3） | <1.0ppm |
（TOC，C） | <0.5ppm |
（SiO2） | <1.0ppm |
4. Siemens EDI Membrane Stack Flow and Physical Specification-IP-LXM10Z
LX-Z Series Membrane Stack | ||||||
order number | Design water production flow rate m3/h(gpm) | Minimum allowable water yield flow rate m3/h(gpm) | DC V | DC A | Transportation weight Kg(lbs.) | Working weight Kg(lbs.) |
IP-LXM04Z | 0.44～0.67(2.0～3.0) | 0.22(1.0) | 0～55 | 0～6 | 68(150) | 45(100) |
IP-LXM10Z | 1.1～1.65(5.0～7.5) | 0.55(2.5) | 0～135 | 0～6 | 91(200) | 68(150) |
IP-LXM18Z | 2.0～3.1(9.0～13.5) | 1.1(4.5) | 0～240 | 0～6 | 100(220) | 77(170) |
IP-LXM24Z | 2.8～4.2(12.5～18.8) | 1.4(6.3) | 0～320 | 0～6 | 113(250) | 91(200) |
IP-LXM30Z | 3.4～5.1(15.0～22.5) | 1.7(7.5) | 0～400 | 0～6 | 123(270) | 100(220) |
IP-LXM45Z | 5.1～7.67(22.5～33.8) | 2.55(11.3) | 0～600 | 0～6 | 145(320) | 122.5(270) |
5. Dimensions and weights of Siemens EDI membrane stack:-IP-LXM10Z
Dimensions & Weight | model number | |||||
IP-LXM04Z | IP-LXM10Z | IP-LXM18Z | IP-LXM24Z | IP-LXM30Z | IP-LXM45Z | |
Hight | 60.5cm（23.8 in） | 60.5 cm（23.8 in） | 60.5 cm（23.8 in） | 60.5 cm（23.8 in） | 60.5 cm（23.8 in） | 60.5 cm（23.8 in） |
wide | 32.0 cm（12.6 in） | 32.0 cm（12.6 in） | 32.0 cm（12.6 in） | 32.0 cm（12.6 in） | 32.0 cm（12.6 in） | 32.0 cm（12.6 in） |
long | 25.7 cm（10.13 in） | 34.8 cm（13.7 in） | 46.4 cm（18.3 in） | 55.4 cm（21.8 in） | 66.6 cm（26.2 in） | 88.6cm (34.9 in) |
Working weight | 45.5Kg（100 lbs） | 60Kg（130 lbs） | 77.3Kg（ 170 lbs） | 90.9Kg（200 lbs） | 100Kg（220 lbs） | 124Kg（273 lbs） |
6. Application areas of Siemens EDI module stack IP-LXM10Z:
The application areas of Siemens EDI module stack are quite extensive. Here are its main application areas:
1. Laboratories and research institutions: In scientific experiments and research, laboratories and research institutions need to use high-purity water to ensure the accuracy and reliability of experimental results. Siemens EDI module stack technology can reduce impurities and various trace chemical components in water, providing clean water quality for laboratories, which is an essential equipment for laboratories.
2. Electronic industry: In the production process, the electronic industry needs to use high-purity water, such as glass shells, display tubes, liquid crystal displays, microcircuit boards, computer hard disks, integrated circuit chips, and monocrystalline silicon semiconductors. Siemens EDI module stack technology can meet the high requirements of the electronic industry for water quality, preventing ion and organic pollution of products and affecting their performance.
3. Pharmaceutical production: In the pharmaceutical production process, the requirements for impurities in water quality are relatively high. Siemens EDI module stack technology can provide high-purity water to meet the requirements of pharmaceutical production for water quality, ensuring the quality and safety of drugs.
4. Power industry: When coal and other fuels are burned in thermal power plants, a large amount of ions and organic substances will be generated, which will affect the operation of the boiler and the lifespan of the equipment. Siemens EDI module stack technology can remove these substances from the water, improving the operational efficiency of the boiler and the lifespan of the equipment.
5. Chemical industry: High-purity water is needed in the chemical production process to prevent ion and organic pollution of products and affect their performance. Siemens EDI module stack technology can provide clean water quality for the chemical industry, meeting its demand for water quality.
6. Food and beverage industry: The food and beverage industry has high requirements for water quality to ensure product quality and safety. Siemens EDI module stack technology can provide high-purity water to meet the requirements of the food and beverage industry for water quality.
In addition, Siemens EDI module stack technology can also be applied to industrial cleaning, water purification, medical equipment manufacturing and other fields. In general, the application areas of Siemens EDI module stack technology are very extensive, almost involving all industries that require high-purity water quality.
7. Common problems and solutions of Siemens EDI module stack IP-LXM04Z:
The common problems and solutions of Siemens EDI module stack are as follows:
1. Leakage of the module stack:
* Fault cause: The module stack may be loose during transportation or operation, or the module stack itself may have defects, or it may be damaged by external impact.
* Solution: Tighten the module stack or contact the local service provider. At the same time, check whether the sealing parts of the module stack are intact. If there is aging or damage, replace them in time.
2. Pipeline leakage:
* Fault cause: Loose joints of the module stack.
* Solution: Tighten the joints and inspect the gaskets.
3. Poor water quality:
* Fault cause: Incorrect setting of operating current, and resin pollution.
* Solution: Measure the conductivity and carbon dioxide of the incoming water and adjust as needed; clean the IP-LXM10Z module; inspect the module stack for obvious membrane damage. Replace the membrane if necessary.
4. Decreased flow rate or increased inlet pressure:
* Fault cause: Scaling, fouling, or oxidation of the module stack; downstream blockage; system fouling or blockage by debris; decreased inlet flow rate.
* Solution: Clean the module stack; inspect the downstream valve status; inspect the upstream valve status, check for leaks; inspect the condition of the inlet water source.
5. Abnormal conductivity of the module stack:
* Fault cause: Contamination of the internal membrane of the module stack or failure of the electrodes of the module stack.
* Solution: Clean the module stack. If cleaning is ineffective, replace the membrane; use tools such as a multimeter to check if the electrodes are失效, and replace them in time if necessary.
6. Abnormal pressure of the module stack:
* Fault cause: The inlet valve of the module stack is not tightly closed or the module stack is blocked.
* Solution: Check the status of the inlet valve. If it is normal, clean the module stack; if cleaning is ineffective, it may be caused by blockage of the module stack, and further treatment is needed. Please note that the above content is for reference only. It is recommended to select appropriate solutions according to specific situations and actual needs. At the same time, before performing any maintenance operations, please ensure that you have fully understood the relevant risks and taken appropriate safety measures. If the problem is complex or cannot
