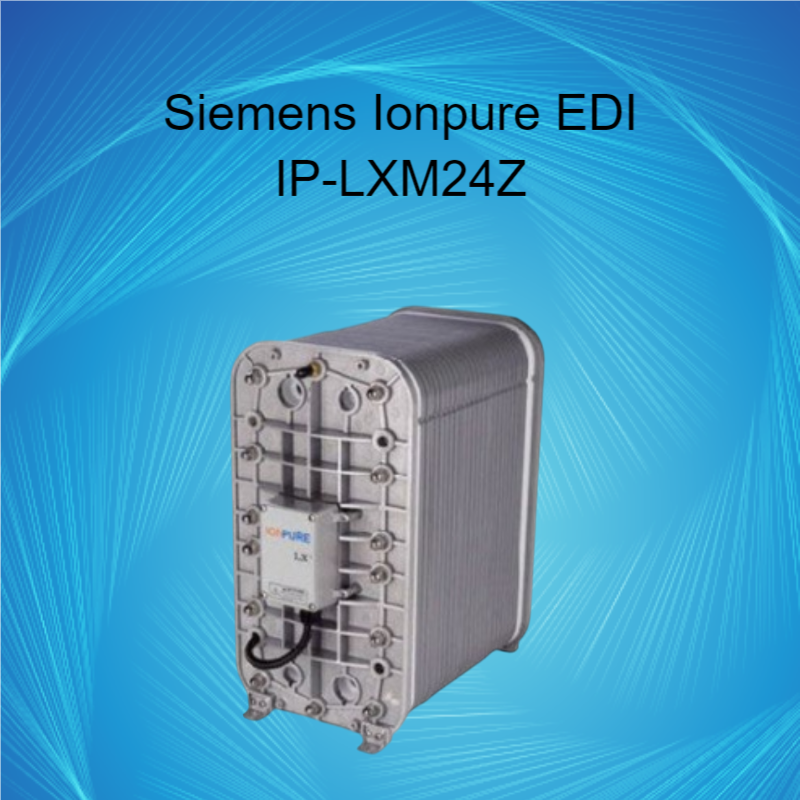

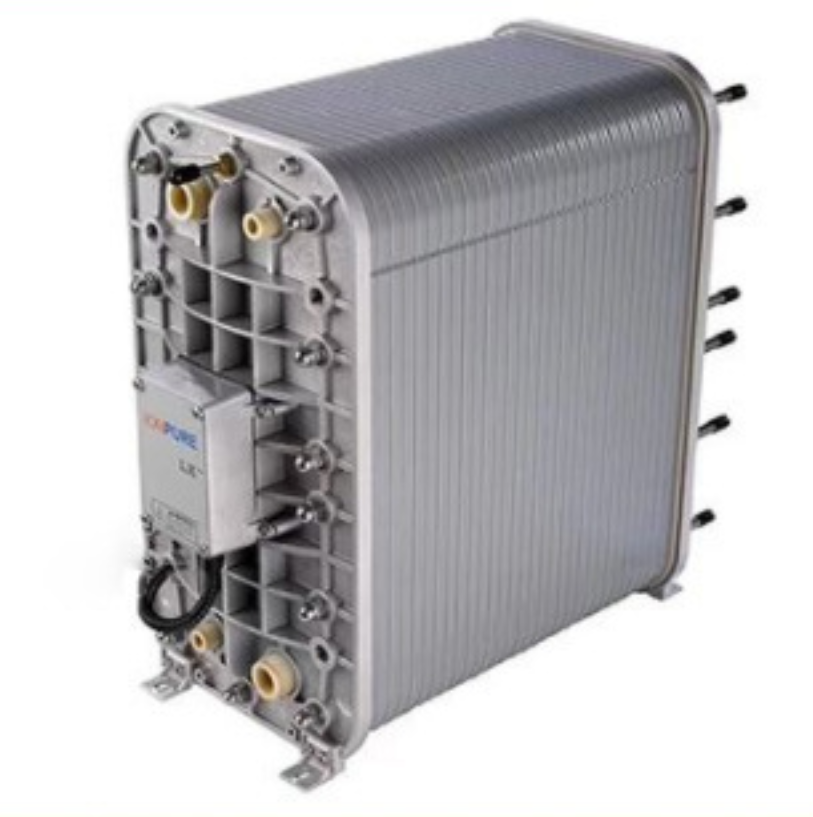

Siemens EDI Membrane Stack - IP-LXM24Z
1. Introduction to Siemens EDI Membrane Stack-IP-LXM24Z
The Siemens EDI Membrane Stack is a water treatment device that uses Continuous Electrodeionization (CEDI) technology. CEDI is an advanced deionization technology that combines ion exchange resins with ion migration under the influence of an electric field. Specifically, when fresh water enters the fresh water chamber, the ions within it undergo ion exchange with the mixed bed resin, thus detaching them from the water. These exchanged ions are attracted by electricity, with cations migrating towards the cathode through the cation exchange membrane and anions migrating towards the anode through the anion exchange membrane, entering the concentrated water chamber and being removed from the fresh water. This process creates a dynamic equilibrium within the module, where the resin is both consumed and regenerated. Compared to traditional ion exchange that requires chemical regenerants, CEDI technology can operate continuously without the need for chemical regenerants, making it simpler to operate and significantly reducing operating costs.
2. Technical Parameters of Siemens EDI Membrane Stack IP-LXM24Z
The technical parameters of IP-LXM24Z mainly include:
1. Minimum water production flow rate: 1.4m3/h (6.3gpm)
2. Nominal water production flow rate: 2.8m3/h (12.5gpm)
3. Design water production flow rate range: 2.8-4.2m3/h (12.5-18.8gpm)
4. Transport weight: 115kg (254lbs)
5. Operating weight: 92kg (203lbs)
6. Recovery rate: 90-95%
7. Feed water conductivity: < 40 pS/cm
8. Maximum allowable feed water pressure: 7bar (100psi)
9. Pressure drop range at nominal water production flow rate: 1.7-2.5bar (25-37psi)
10. Maximum allowable feed water temperature: 45℃ (113℉)
3. The lowest water quality requirement for Siemens EDI membrane stack-IP-LXM24Z
（CO2） The equivalent conductivity of influent water (including CO2 and silicon) | <40μs/cm |
Water inlet source | RO Product water |
Temperature | 5-45℃（40-113°F) |
Inlet pressure | 1.4-7bar（20-100psi） |
（Cl2） Oxidant (calculated as Cl2) | <0.02ppm |
（Fe) | <0.01ppm |
（Mn) | <0.01ppm |
（S2-) | <0.01ppm |
pH | 4-11 |
（CaCO3） | <1.0ppm |
（TOC，C） | <0.5ppm |
（SiO2） | <1.0ppm |
4. Siemens EDI Membrane Stack Flow and Physical Specification-IP-LXM24Z
LX-Z Series Membrane Stack | ||||||
order number | Design water production flow rate m3/h(gpm) | Minimum allowable water yield flow rate m3/h(gpm) | DC V | DC A | Transportation weight Kg(lbs.) | Working weight Kg(lbs.) |
IP-LXM04Z | 0.44～0.67(2.0～3.0) | 0.22(1.0) | 0～55 | 0～6 | 68(150) | 45(100) |
IP-LXM10Z | 1.1～1.65(5.0～7.5) | 0.55(2.5) | 0～135 | 0～6 | 91(200) | 68(150) |
IP-LXM18Z | 2.0～3.1(9.0～13.5) | 1.1(4.5) | 0～240 | 0～6 | 100(220) | 77(170) |
IP-LXM24Z | 2.8～4.2(12.5～18.8) | 1.4(6.3) | 0～320 | 0～6 | 113(250) | 91(200) |
IP-LXM30Z | 3.4～5.1(15.0～22.5) | 1.7(7.5) | 0～400 | 0～6 | 123(270) | 100(220) |
IP-LXM45Z | 5.1～7.67(22.5～33.8) | 2.55(11.3) | 0～600 | 0～6 | 145(320) | 122.5(270) |
5. Dimensions and weights of Siemens EDI membrane stack:-IP-LXM24Z
Dimensions & Weight | model number | |||||
IP-LXM04Z | IP-LXM10Z | IP-LXM18Z | IP-LXM24Z | IP-LXM30Z | IP-LXM45Z | |
Hight | 60.5cm（23.8 in） | 60.5 cm（23.8 in） | 60.5 cm（23.8 in） | 60.5 cm（23.8 in） | 60.5 cm（23.8 in） | 60.5 cm（23.8 in） |
wide | 32.0 cm（12.6 in） | 32.0 cm（12.6 in） | 32.0 cm（12.6 in） | 32.0 cm（12.6 in） | 32.0 cm（12.6 in） | 32.0 cm（12.6 in） |
long | 25.7 cm（10.13 in） | 34.8 cm（13.7 in） | 46.4 cm（18.3 in） | 55.4 cm（21.8 in） | 66.6 cm（26.2 in） | 88.6cm (34.9 in) |
Working weight | 45.5Kg（100 lbs） | 60Kg（130 lbs） | 77.3Kg（ 170 lbs） | 90.9Kg（200 lbs） | 100Kg（220 lbs） | 124Kg（273 lbs） |
6. Application areas of Siemens EDI module stack IP-LXM24Z:
The application areas of Siemens EDI module stack are quite extensive. Here are its main application areas:
1. Laboratories and research institutions: In scientific experiments and research, laboratories and research institutions need to use high-purity water to ensure the accuracy and reliability of experimental results. Siemens EDI module stack technology can reduce impurities and various trace chemical components in water, providing clean water quality for laboratories, which is an essential equipment for laboratories.
2. Electronic industry: In the production process, the electronic industry needs to use high-purity water, such as glass shells, display tubes, liquid crystal displays, microcircuit boards, computer hard disks, integrated circuit chips, and monocrystalline silicon semiconductors. Siemens EDI module stack technology can meet the high requirements of the electronic industry for water quality, preventing ion and organic pollution of products and affecting their performance.
3. Pharmaceutical production: In the pharmaceutical production process, the requirements for impurities in water quality are relatively high. Siemens EDI module stack technology can provide high-purity water to meet the requirements of pharmaceutical production for water quality, ensuring the quality and safety of drugs.
4. Power industry: When coal and other fuels are burned in thermal power plants, a large amount of ions and organic substances will be generated, which will affect the operation of the boiler and the lifespan of the equipment. Siemens EDI module stack technology can remove these substances from the water, improving the operational efficiency of the boiler and the lifespan of the equipment.
5. Chemical industry: High-purity water is needed in the chemical production process to prevent ion and organic pollution of products and affect their performance. Siemens EDI module stack technology can provide clean water quality for the chemical industry, meeting its demand for water quality.
6. Food and beverage industry: The food and beverage industry has high requirements for water quality to ensure product quality and safety. Siemens EDI module stack technology can provide high-purity water to meet the requirements of the food and beverage industry for water quality.
In addition, Siemens EDI module stack technology can also be applied to industrial cleaning, water purification, medical equipment manufacturing and other fields. In general, the application areas of Siemens EDI module stack technology are very extensive, almost involving all industries that require high-purity water quality.
7. Common problems and solutions of Siemens EDI module stack IP-LXM04Z:
Common problems and solutions of Siemens EDI membrane stack are as follows:
1. Leakage of membrane stack:
* Fault cause: It may be due to loosening during transportation or operation, defects in the membrane stack itself, or damage caused by external heavy impacts.
* Solution: Tighten the membrane stack or contact the local service provider.
2. Pipeline leakage:
* Fault cause: Loose connection of the membrane stack joints.
* Solution: Tighten the joints and check the gaskets.
3. Poor water quality:
* Fault cause: Incorrect setting of operating current or contamination of the resin.
* Solution: Measure the incoming water conductivity and carbon dioxide, and adjust as needed; clean the IP-MXM250 module.
4. Decrease in flow rate or increase in inlet pressure:
* Fault cause: Scaling, fouling, or oxidation of the membrane stack; downstream blockage; system fouling or blockage by debris; decrease in incoming water flow rate.
* Solution: Clean the membrane stack; check the downstream valve status; check the upstream valve status to see if there is any leakage; check the incoming water source condition.
5. Abnormal conductivity of the membrane stack:
* Fault cause: Contamination of the internal membrane sheet of the membrane stack or failure of the membrane stack electrodes.
* Solution: Clean the membrane sheet; if cleaning is ineffective, replace the membrane sheet; use tools such as a multimeter to detect if the electrodes are failed, and replace them in time if necessary.
6. Abnormal pressure of the membrane stack:
* Fault cause: The inlet water valve of the membrane stack is not closed tightly or the membrane stack is blocked.
* Solution: Check the inlet water valve to ensure it is closed properly; clean the membrane stack; if cleaning is ineffective, it may be due to blockage of the membrane stack, which requires further treatment.
7. Failed electrodes of the membrane stack:
* Fault cause: Electrode aging, corrosion, or poor connection.
* Solution: Check the electrode status, and replace it in time if there is aging or corrosion; check the electrode connection to ensure good connection.
Please note that the above solutions are for reference only, and specific repairs and operations should be performed by professionals. When handling problems, always follow relevant safety regulations and operating procedures.
